Fans8
Axial fans
Axial fan, 25 x 10 mm
FAN-25x10- 25 × 25 × 10 mm
- Free-air flow 3 CFM
- Shutoff pressure 17 Pa
Axial fan, 30 x 10 mm
FAN-30x10- 30 × 30 × 10 mm
- Free-air flow 4 CFM
- Shutoff pressure 20 Pa
Axial fan, 40 x 10 mm
FAN-40x10- 40 × 40 × 10 mm
- Free-air flow 7 CFM
- Shutoff pressure 20 Pa

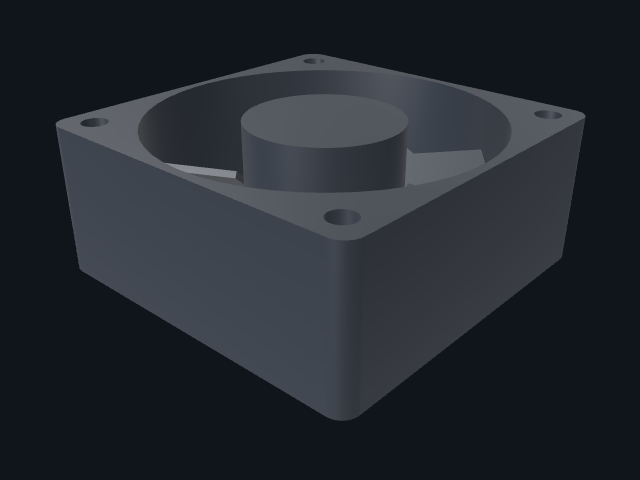

Axial fan, 60 x 25 mm
FAN-60x25- 60 × 60 × 25 mm
- Free-air flow 20 CFM
- Shutoff pressure 30 Pa
Axial fan, 80 x 25 mm
FAN-80x25- 80 × 80 × 25 mm
- Free-air flow 35 CFM
- Shutoff pressure 35 Pa
Axial fan, 92 x 25 mm
FAN-92x25- 92 × 92 × 25 mm
- Free-air flow 50 CFM
- Shutoff pressure 35 Pa
Axial fan, 120 x 25 mm
FAN-120x25- 120 × 120 × 25 mm
- Free-air flow 80 CFM
- Shutoff pressure 45 Pa
Axial fan, 140 x 25 mm
FAN-140x25- 140 × 140 × 25 mm
- Free-air flow 100 CFM
- Shutoff pressure 40 Pa
Motors9
Stepper motors
NEMA 17 stepper, 40 mm
NEMA17-40- 42.3 × 47.2 × 66 mm
- Holding torque 0.4 N·m
- Rated current 1.5-1.7 A

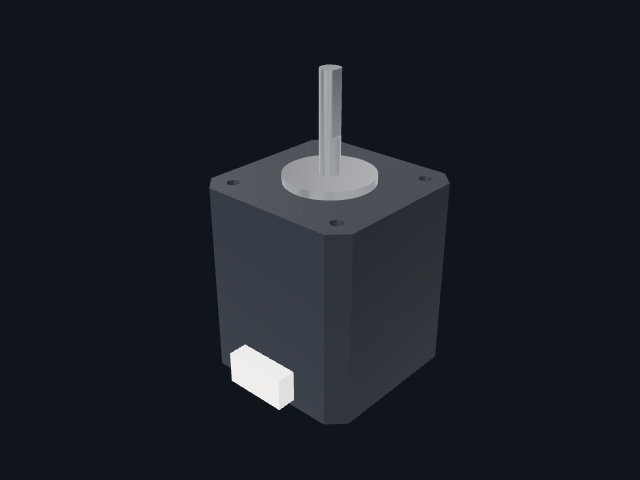

NEMA 17 stepper, 48 mm
NEMA17-48- 42.3 × 47.2 × 74 mm
- Holding torque 0.55 N·m
- Rated current 1.5-2 A
NEMA 23 stepper, 56 mm
NEMA23-56- 56.4 × 61.3 × 78.6 mm
- Holding torque 1.26 N·m
- Rated current 2.8-3 A
Brushless outrunner motors
Brushless outrunner 1404, 4000 KV
BLDC-1404-4000KV- 18.5 × 18.5 × 17.5 mm
- Speed constant 4000 rpm/V
- Thrust up to 2.5 N

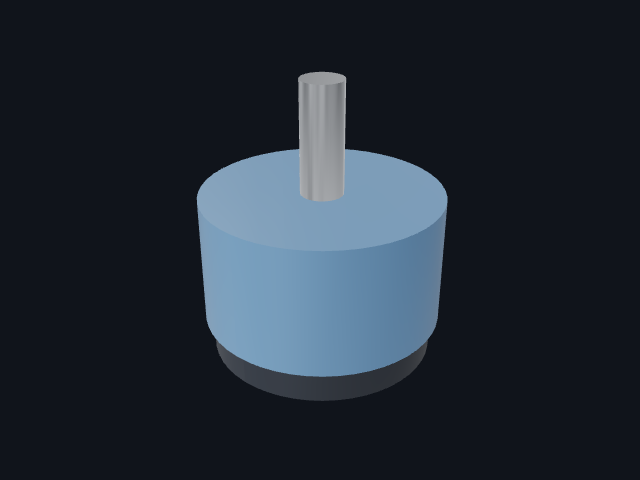

Brushless outrunner 2207, 1950 KV
BLDC-2207-1950KV- 27.9 × 27.9 × 32 mm
- Speed constant 1950 rpm/V
- Thrust up to 14 N
Brushless outrunner 2806, 1300 KV
BLDC-2806-1300KV- 33.5 × 33.5 × 33 mm
- Speed constant 1300 rpm/V
- Thrust up to 18 N

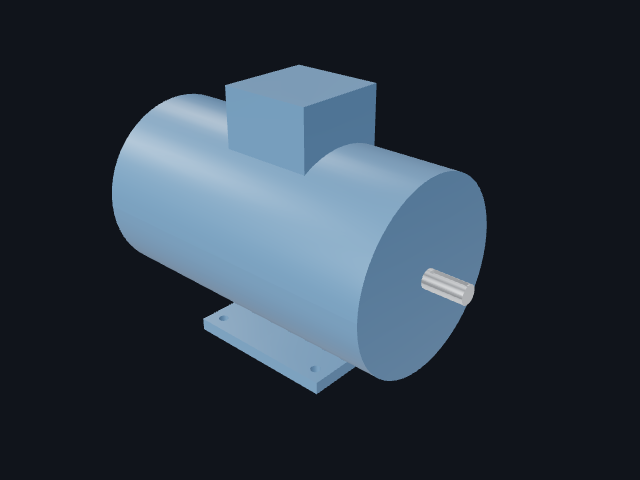

IEC induction motors
IEC 63 induction motor, 0.18 kW 4-pole
IEC63-B3-0.18kW- 233 × 124 × 159.5 mm
- Power 0.18 kW
- Rated speed 1370 rpm
IEC 71 induction motor, 0.37 kW 4-pole
IEC71-B3-0.37kW- 270 × 140 × 175.5 mm
- Power 0.37 kW
- Rated speed 1390 rpm
IEC 80 induction motor, 0.75 kW 4-pole
IEC80-B3-0.75kW- 315 × 158 × 193.5 mm
- Power 0.75 kW
- Rated speed 1400 rpm
